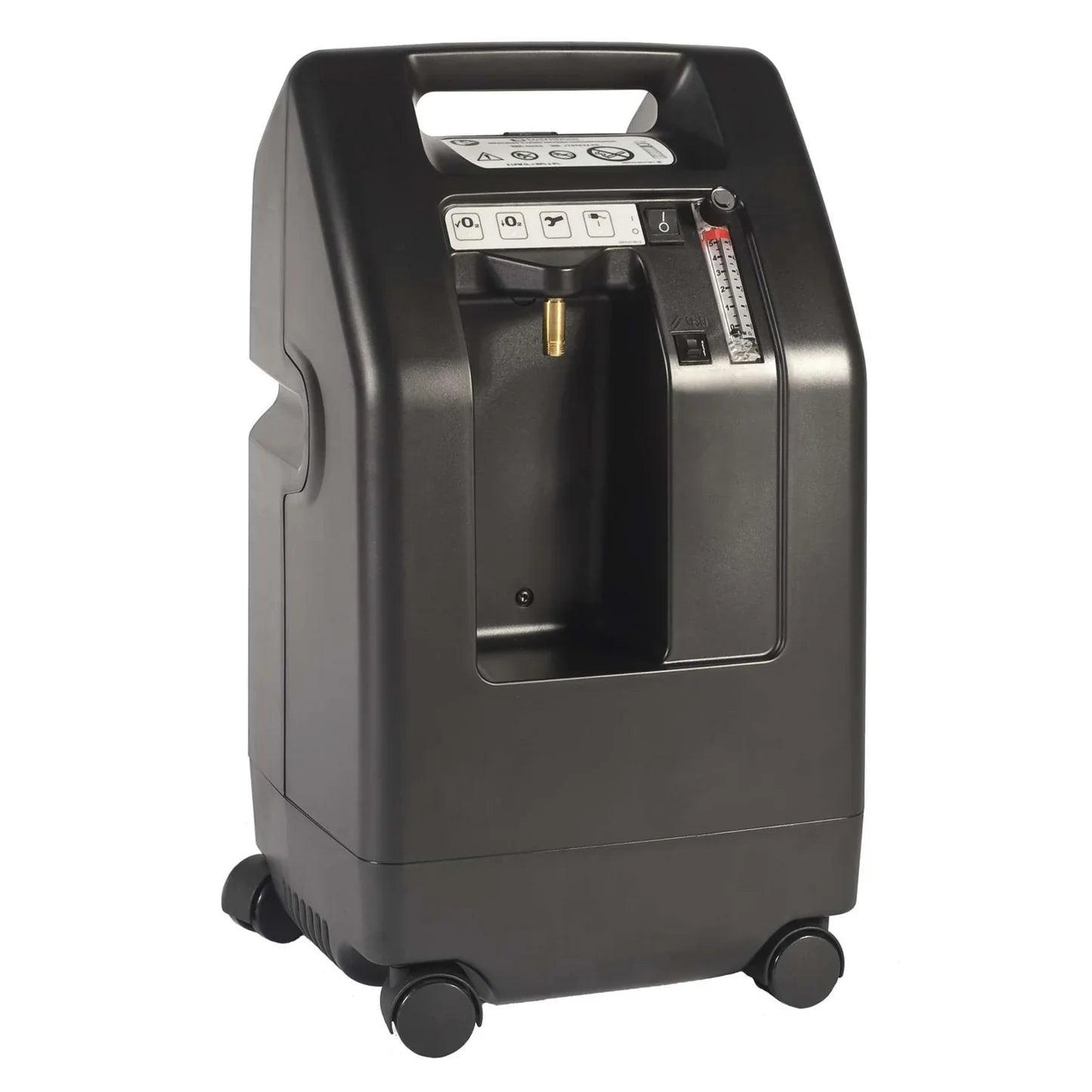

Drive DeVilbiss 525DS Compact Oxygen Concentrator
Drive DeVilbiss 525DS Compact Oxygen Concentrator
Couldn't load pickup availability
Drive DeVilbiss 525DS Compact Oxygen Concentrator
Quiet | Efficient | Reliable Home Oxygen Therapy
The Drive DeVilbiss 525DS Compact Oxygen Concentrator is a robust, USA-manufactured device engineered to deliver continuous oxygen therapy at flow rates up to 5 LPM, 24 hours a day, 365 days a year. Its innovative Turn-Down Technology reduces energy consumption and wear on internal components, extending unit life while cutting electricity costs by 15% or more compared to conventional concentrators.

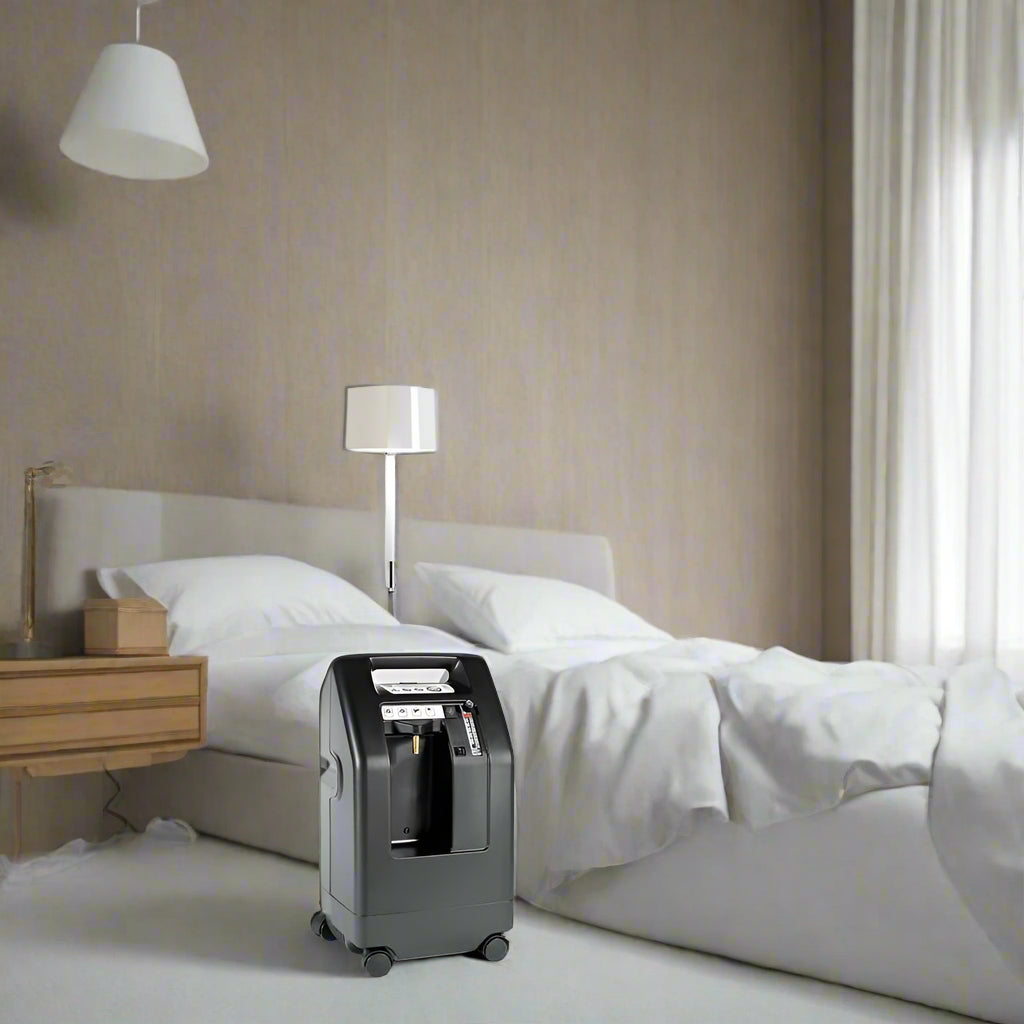

With a simplified cabinet design that improves airflow and reduces noise levels, the 525DS ensures quiet, dependable therapy. Weighing just 36 lbs (16.3 kg) and equipped with smooth-rolling wheels and integrated handles, this concentrator is easy to move around the home.
For peace of mind, the unit features the exclusive DeVilbiss Oxygen Sensing Device (OSD), continuously monitoring oxygen output to guarantee consistent, safe delivery. Clear front-panel indicator lights, intuitive flow controls, and built-in safety systems—including pressure relief, thermal protection, and flame-retardant housing—make this concentrator reliable, efficient, and user-friendly.
🏥 Key Features
-
Continuous flow oxygen concentrator up to 5 LPM
-
Compact, quiet operation with improved cooling design
-
DeVilbiss Turn-Down Technology for reduced power use and extended life
-
Lightweight at 36 lbs (16.3 kg) with wheels and carry handles for mobility
-
Exclusive OSD system monitors oxygen output for safety and reliability
-

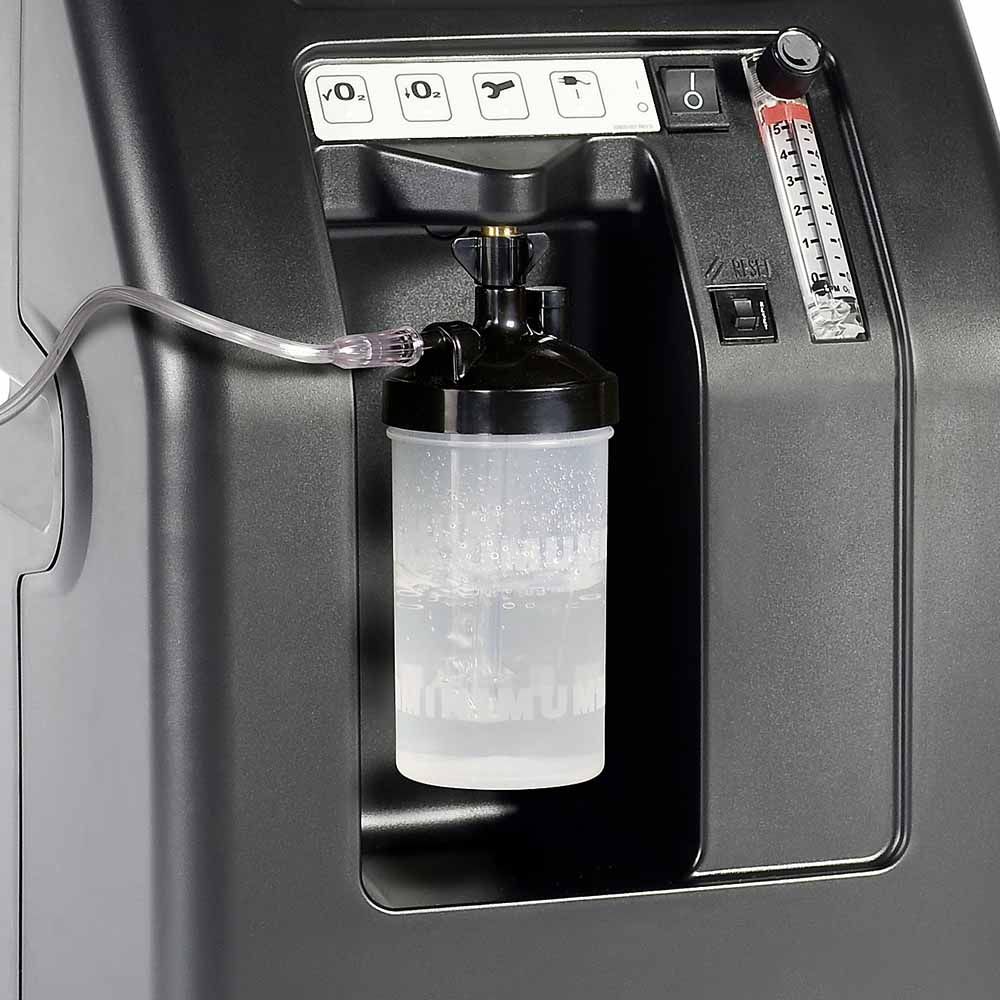

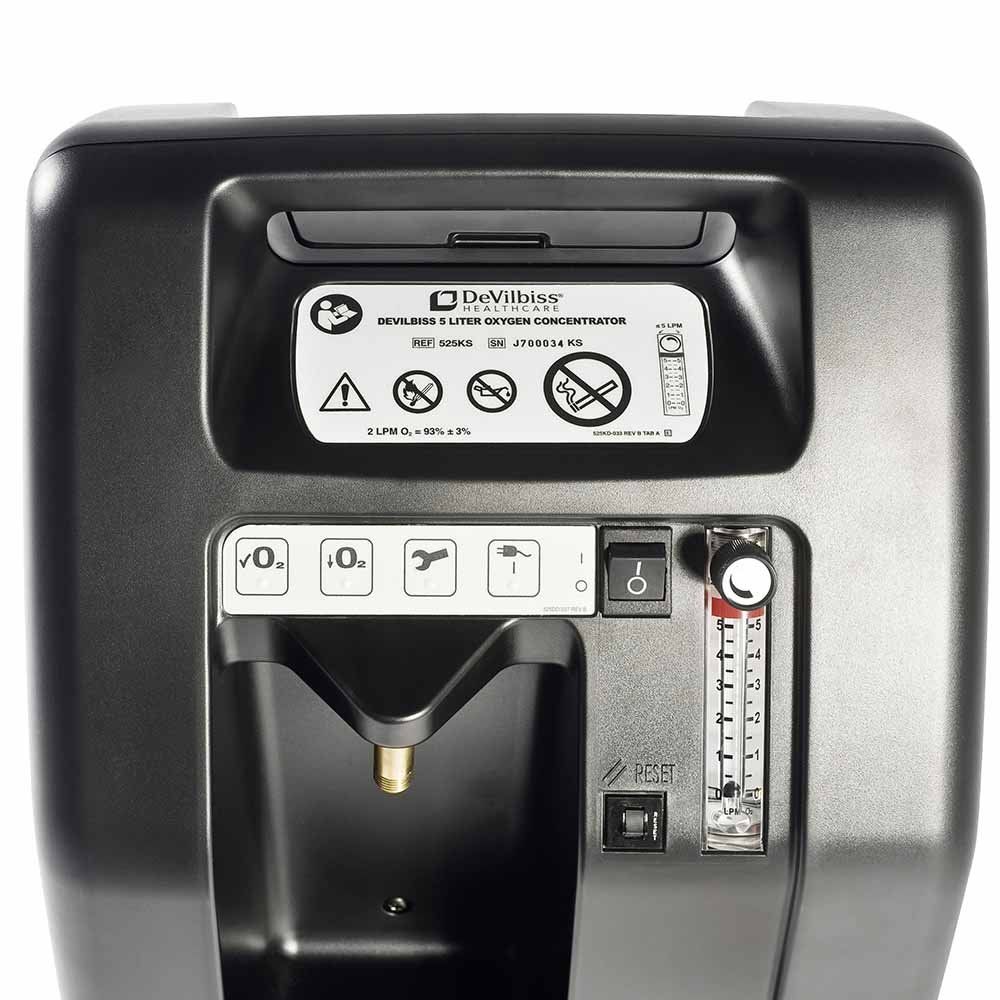

Easy-to-read pressure-compensated flow meter and indicator lights
-
Built-in safety features: alarms, pressure relief, flame-retardant cabinet
-
Designed and manufactured in the USA for quality assurance
Specifications
GENERAL SPECIFICATIONS | |
---|---|
Manufacturer | Drive DeVilbiss |
Country of Origin | [] (Typical) |
Part Numbers | 525DS |
HCPCS Codes | E1390 |
GTIN/UPC Codes | 00885304000846 |
In The Package | DeVilbiss 5 Compact Oxygen Concentrator, AC Power Cord, Nut & Stem Oxygen Tubing Adapter, 12 Free Nasal Cannulas, Printed Patient Manual, and 3-Year Manufacturer's Warranty (Concentrator Only). |
Warranty | 3-Year - Review manufacturer's documentation for full warranty details. |
Intended Use | The DeVilbiss 525DS Oxygen Concentrator intended use is to provide supplemental low flow oxygen therapy for patients suffering from COPD, cardiovascular disease, and lung disorders. |
PHYSICAL DETAILS | |
---|---|
Available Colors | Charcoal Gray / Black |
Dimensions | 24.5 x 13.5 x 12.0 Inches (Approximate) |
Weight | 36 Lbs |
Materials | Latex Free |
OXYGEN CONCENTRATOR SPECIFICATIONS | |
---|---|
Continuous Flow Settings (LPM) | .5 to 5 LPM |
Oxygen Concentration | 93% ± 3% (at 5 LPM) |
Oxygen Percentage Indicator | OPI Included |
Oxygen Alarms & Alerts | Power Operation, No Power, Service Required, High/Low Pressure, Low Flow, Low Oxygen (Visible Low Oxygen Indicator with audible alert at 75% and red "service required" light at less than 60%). |
Maximum Cannula & Tubing Length | 57 Feet |
Operating Altitude | Up to 13,123 Feet |
Compatible Filters | External: Air Inlet Filter (Replace on average every 2-Years), Internal: Bacteria Filter (Replace on average Every 2-Years), Extended Life Intake Bacteria Filter (Replace on average every 5-Years) |
Sound Levels | ≤ 48 dBa (Average) |
AC (WALL) POWER SPECIFICATIONS | |
---|---|
AC Power Input | 97-127 V~, 60 Hz |
Power Cord Length | 9 Feet 6 Inches |
Power Consumption | 310 Watts |
📦 In the Box
-
Drive DeVilbiss 525DS Oxygen Concentrator unit
-
Power cable
-
Humidifier bottle adaptor
-
User manual
