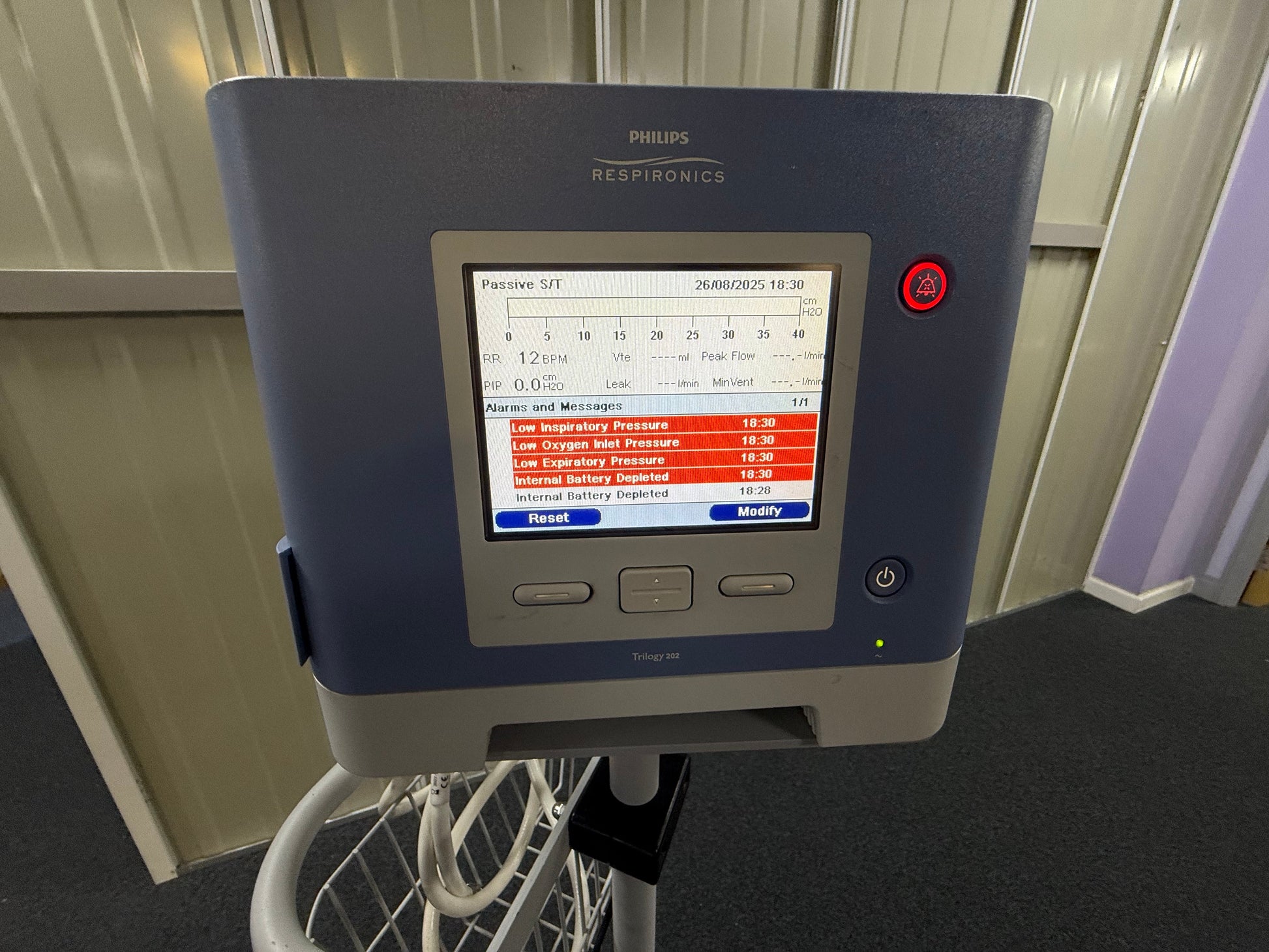

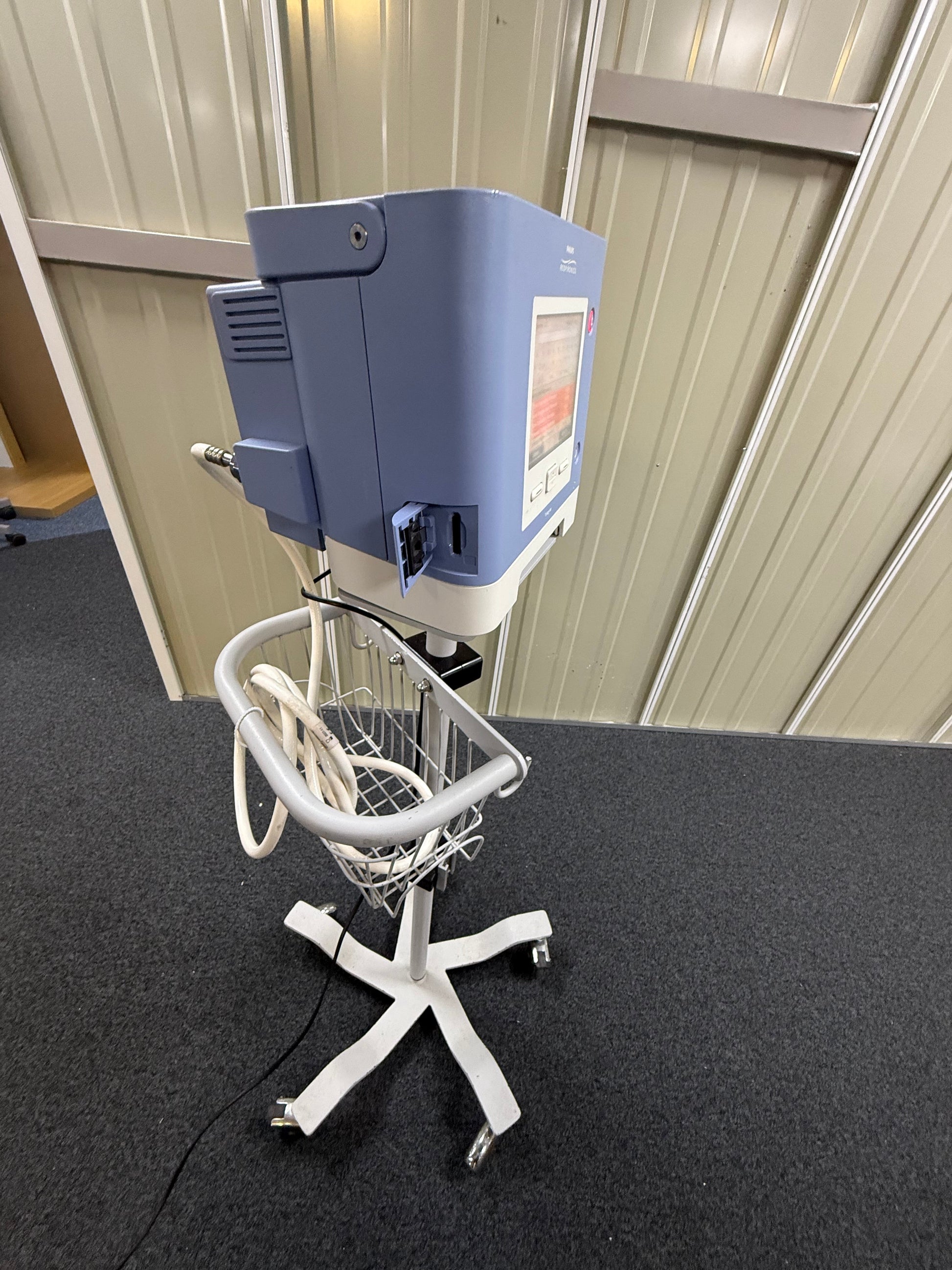

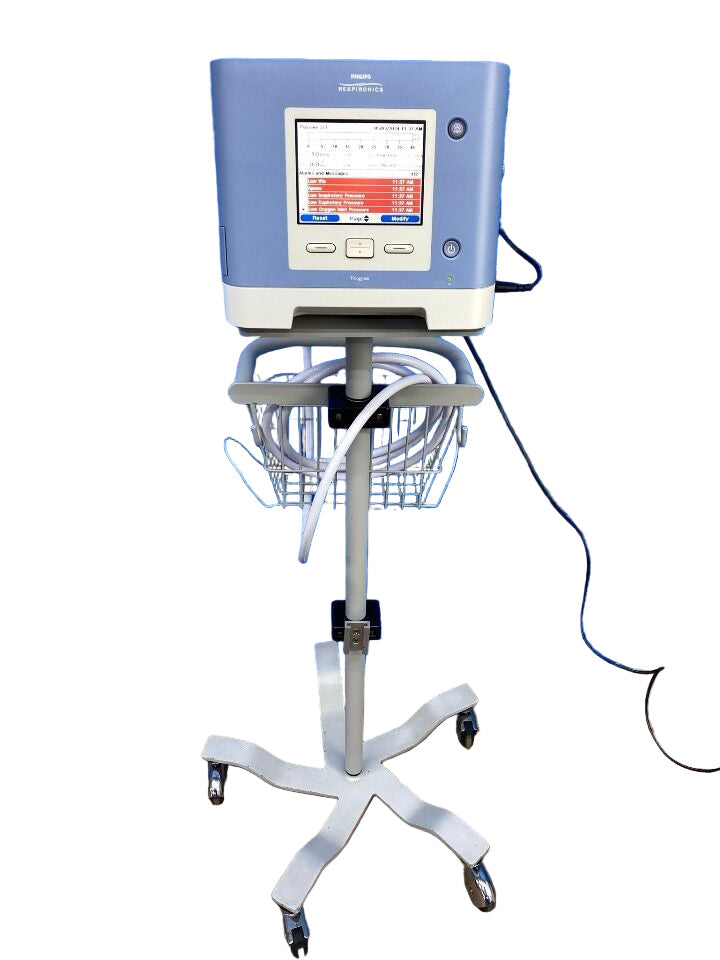

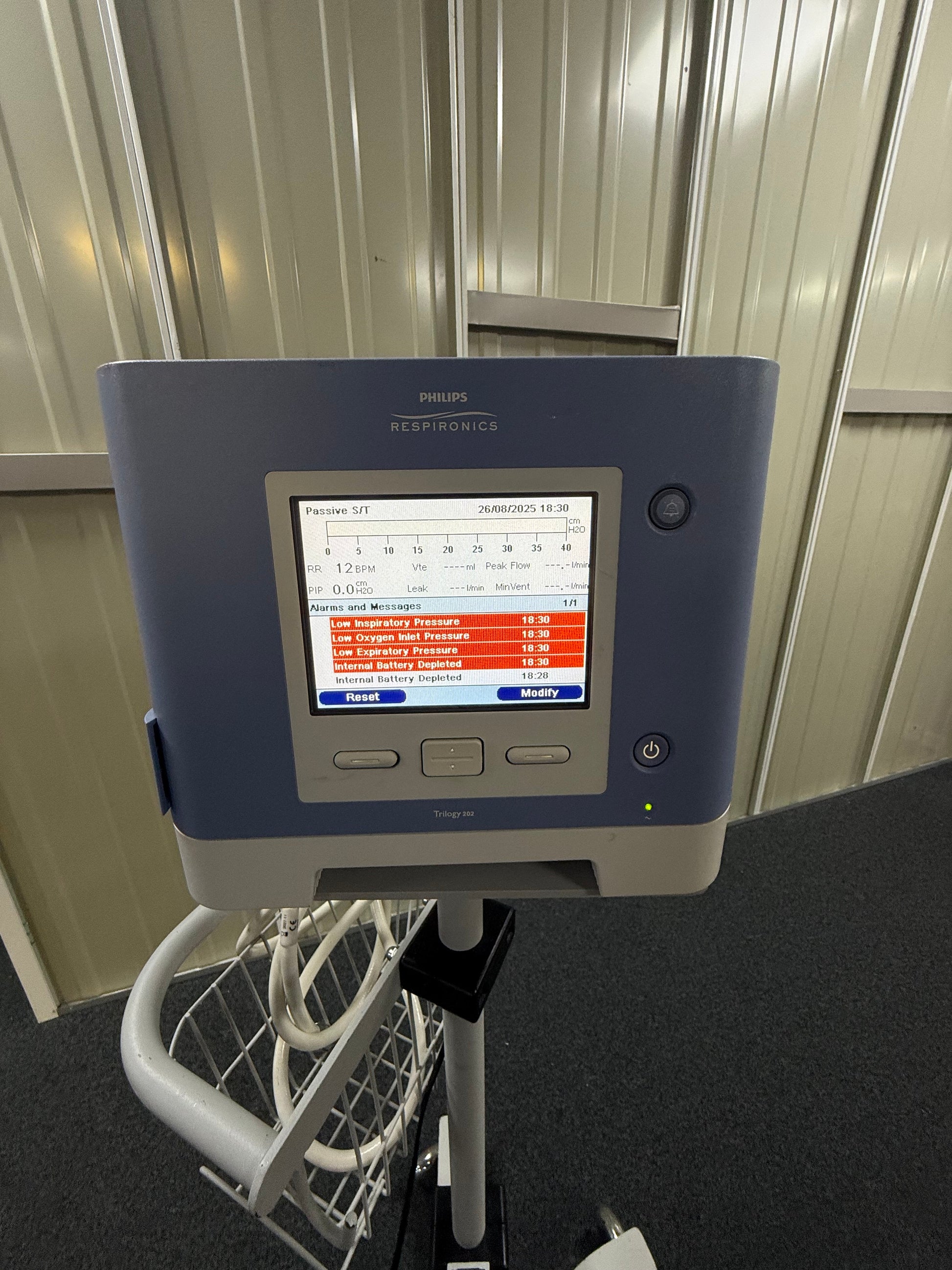

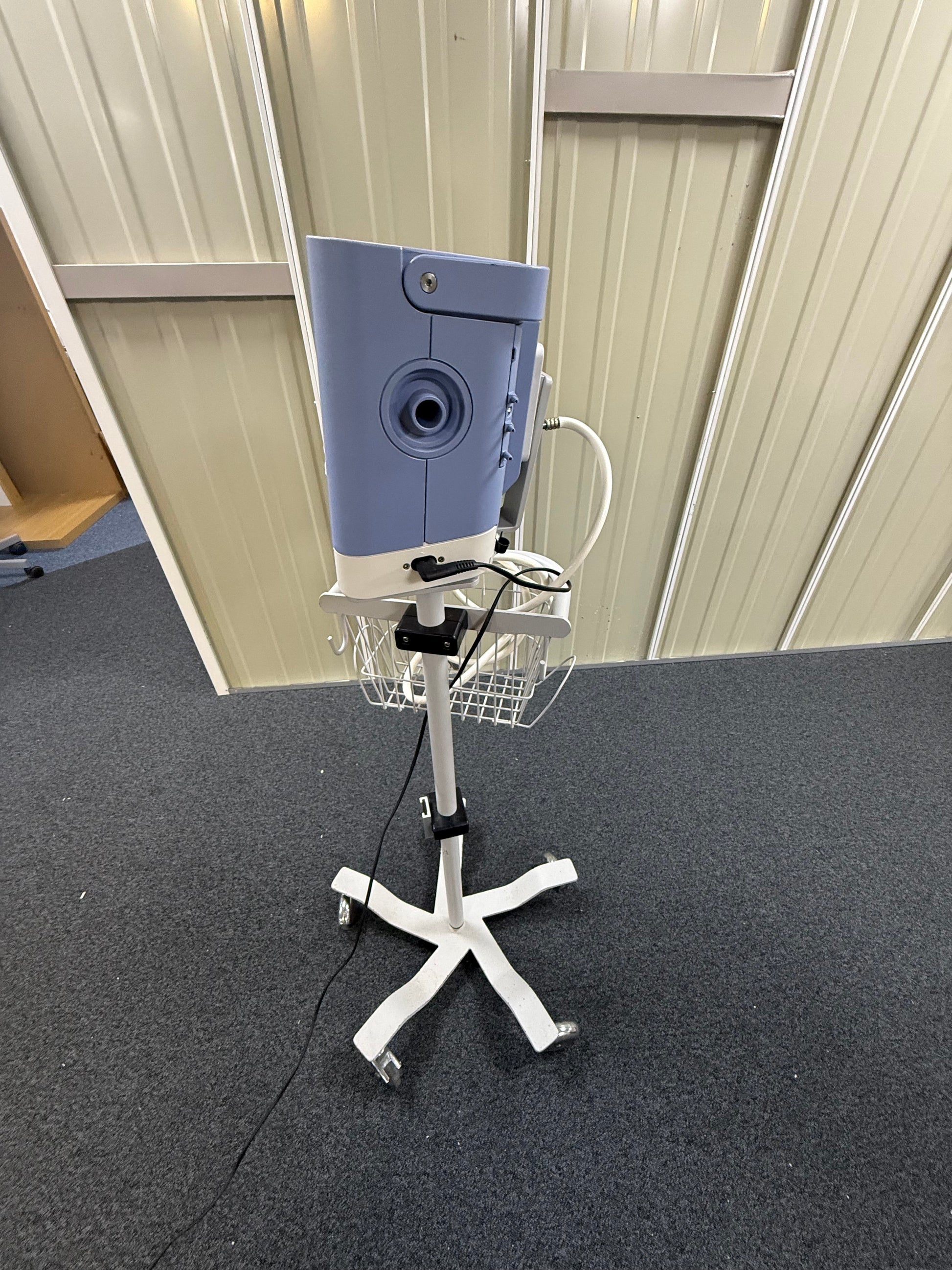

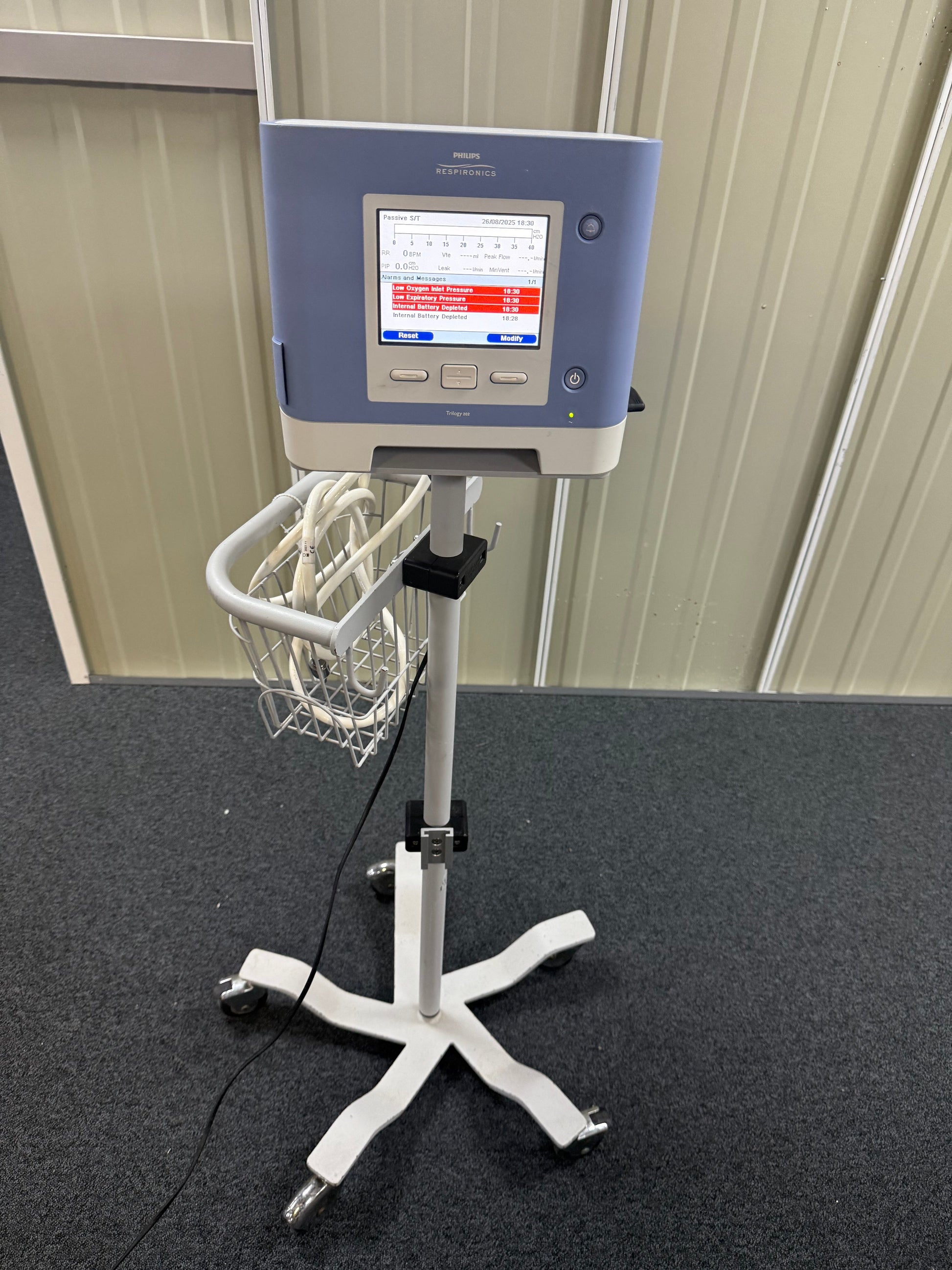

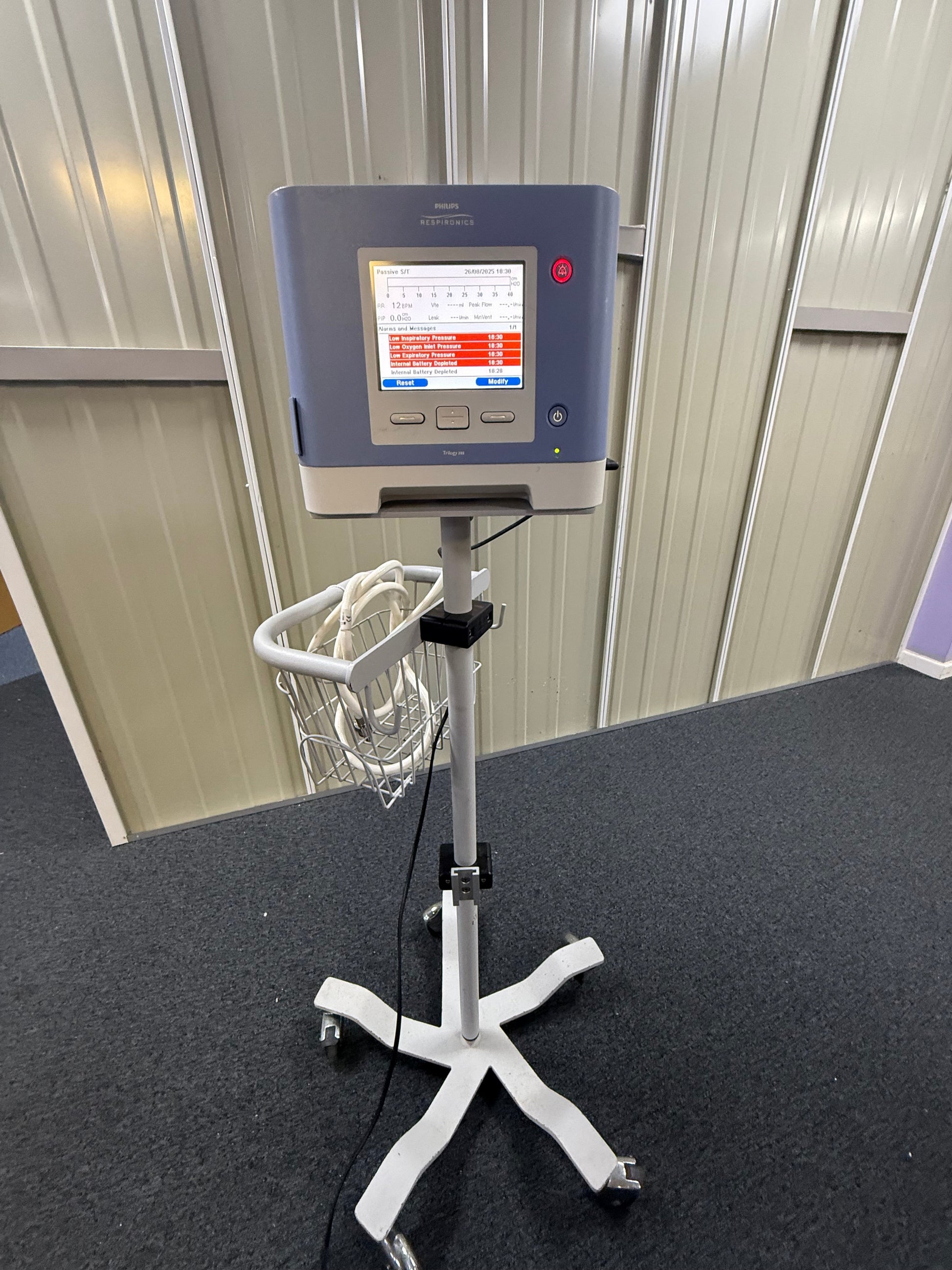

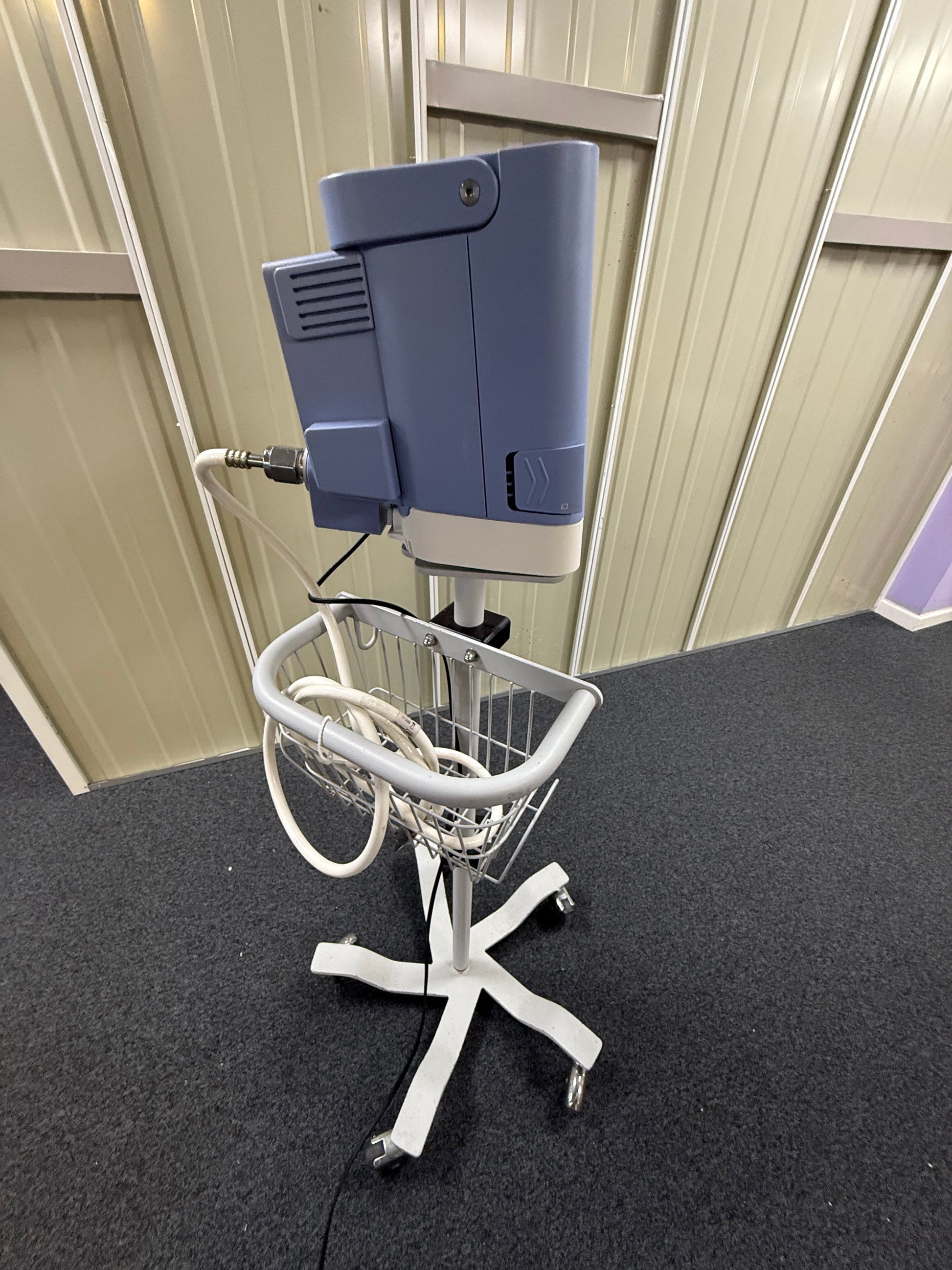

Philips Respironics Trilogy 202 Ventilator

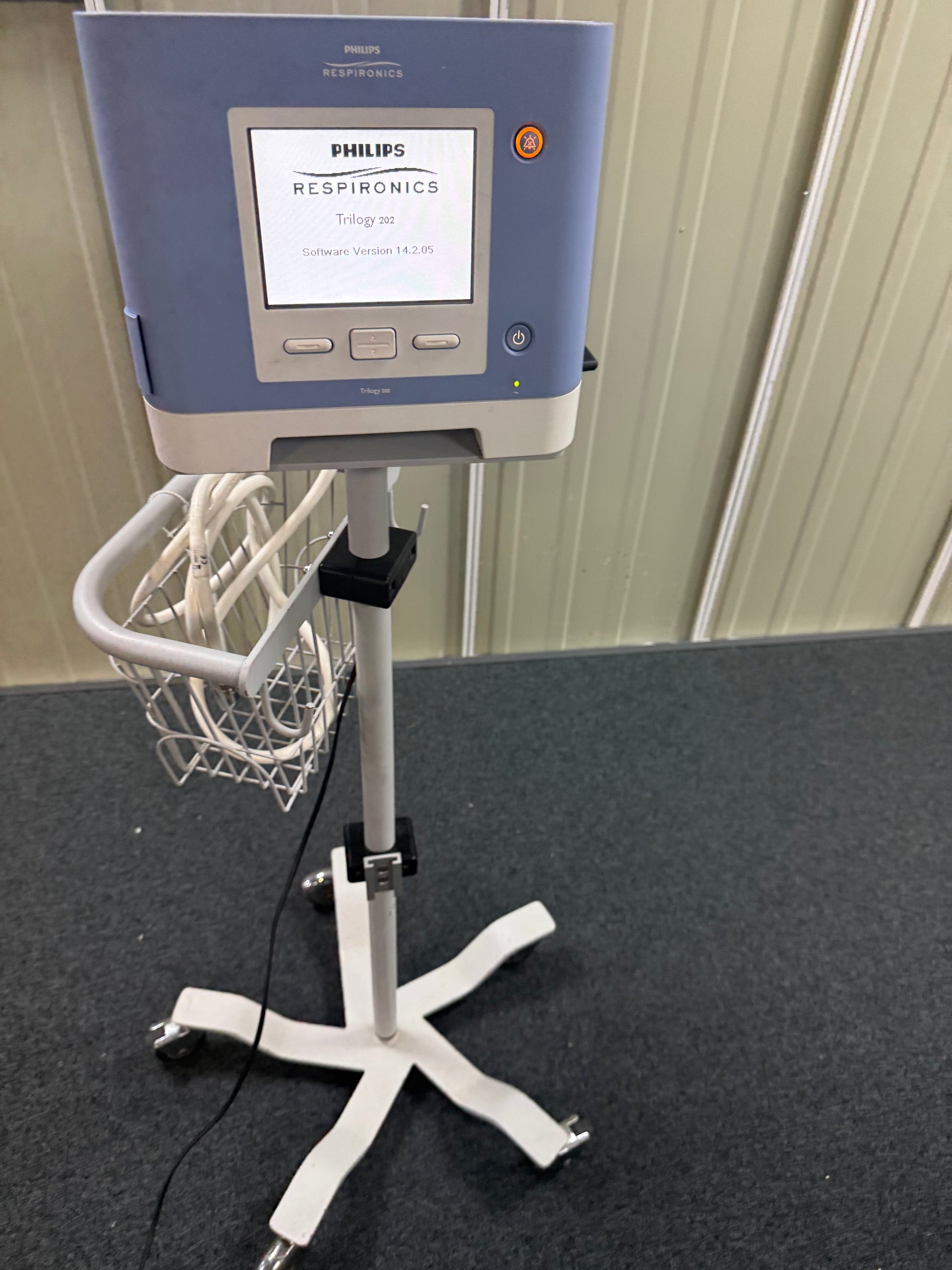

Software Version 14.2.05 | Model 1040000 / 989805621001

The Philips Respironics Trilogy 202 is a versatile, portable ventilator designed for invasive and non-invasive ventilation in both hospital and hospital-to-home transition settings. With advanced synchrony features, leak-compensated volume modes, and up to 6 hours of battery life, the Trilogy 202 ensures reliable support for both adult and paediatric patients (≥ 5kg).

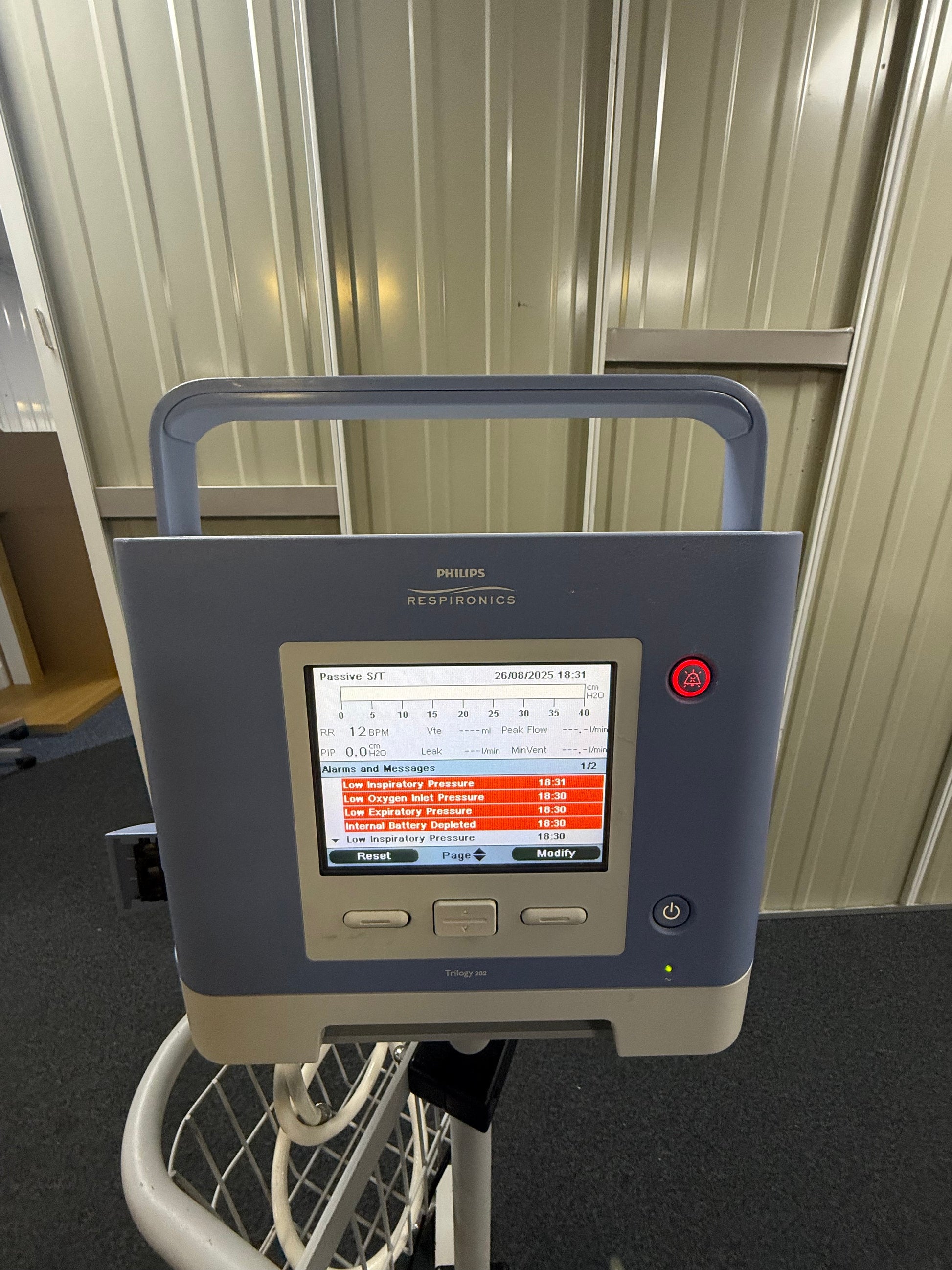

Lightweight at only 5.6 kg, and equipped with an integrated carrying handle, the Trilogy 202 provides mobility for intra-hospital transport while maintaining continuity of care across multiple environments.

✅ Key Benefits & Features

• Auto-Trak Synchrony Technology – Automatically adapts to patient breathing patterns and dynamic leaks, reducing the need for frequent clinician adjustments.

• Leak Compensation – Ensures consistent tidal volume delivery in both pressure and volume modes, even during mask or cuff leaks.

• Flexible Circuit Compatibility – Supports active and passive exhalation circuits, allowing quick adaptation to patient needs.

• Portable Design – Lightweight, compact, with 3-hour internal battery and optional 3-hour detachable battery for a total of 6 hours of run time.

• Hospital-to-Home Continuity – Identical modes and circuit settings across Trilogy devices simplify patient transitions.

• Bluetooth & Data Management – Integrated connectivity options plus 1 GB SD card data storage for review and analysis.

• Optional Accessories – Detachable back-up battery, hospital roll stand with basket/humidifier mount, and DirectView software for advanced patient monitoring.

📐 Technical Specifications

Patient Types

• Adults

• Paediatric patients ≥ 5 kg

Ventilation Modes

• Volume Modes: AC, SIMV (±PS), CV, MPV

• Pressure Modes: PC, PC-SIMV, S, S/T, T, CPAP

• Hybrid: AVAPS (with passive circuits)

Synchrony Features

• Auto-Trak auto-adaptive triggering, cycling & leak compensation

• Adjustable flow triggering: 1 – 9 L/min

• Flow cycle sensitivity: 10–90%

Oxygen & Controls

• FiO₂: 21–100%

• O₂ input pressure: 276–600 kPa (40–87 psi)

• CPAP: 4–20 cmH₂O

• EPAP/PEEP: 0–25 cmH₂O (active) / 4–25 cmH₂O (passive)

• Pressure Support: 0–30 cmH₂O

• Tidal Volume: 50–2000 mL

• Breath Rate: 0–60 BPM (AC) / 1–60 BPM (others)

• Inspiratory Time: 0.3–5.0 s

Monitoring & Alarms

• Tidal Volume: 0–2000 mL

• Minute Ventilation: 0–99 L/min

• Respiratory Rate: 0–80 BPM

• Leak Estimation: 0–200 L/min

• Peak Pressure: 0–99 cmH₂O

• Adjustable alarms for low/high tidal volume, apnea, circuit disconnect, respiratory rate, and ventilation limits.

Physical & Environmental

• Weight: 5.6 kg

• Dimensions: 28.6 W x 24.5 H x 16.5 D cm

• Operating Temperature: 5–40°C

• Humidity: 15–95% RH

• Storage Temp: –20–60°C

Power & Battery

• AC Input: 100–240V, 50/60 Hz

• Internal Battery: 3 hours

• Detachable Battery: 3 hours

• External Battery: 12 VDC

🌍 Why Choose the Trilogy 202?

With its advanced synchrony algorithms, leak compensation technology, and portability, the Philips Trilogy 202 Ventilator is a proven solution for ICU, transport, and home settings. It enables seamless continuity of care and delivers reliable ventilatory support across patient groups.
